Enclosed Flaring System

(Smokeless, Noise-Controlled, and Environmentally Compliant Biogas Flare Unit)

When surplus biogas cannot be utilized due to maintenance activities, overproduction, or safety bypass conditions, it must be safely combusted. In locations where safety, visibility, emissions, or noise control are critical, enclosed flaring systems are preferred over open flare arrangements.

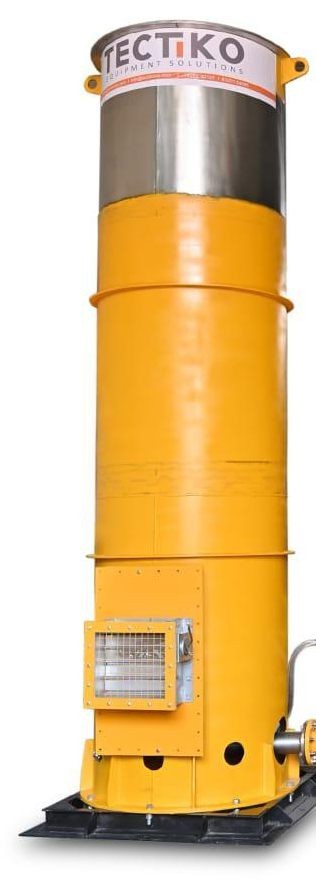

TECTIKO Enclosed Flares are engineered for clean, smokeless, and noise-controlled combustion of excess biogas. TECTIKO systems are well suited for urban, industrial, and regulated environments where open flame operation is restricted or not permitted.

Working Principle:

    • The biogas enters a sealed combustion chamber, where it is ignited using an automatic electric or pilot flame ignition system.
    • Combustion takes place inside a closed cylindrical housing, shielding the flame from external view.

      Component                                                   Description

  • Flare Type                                           Enclosed / Hidden Flame Flare System
  • Ignition                                                Automatic: Electric Spark / Pilot Burner with Flame Detection
  • Control Panel                                     IP65-Rated Panel with Mini-PLC (Automatic Start/Stop)
  • Combustion Chamber                      SS Cylindrical Housing with Wind Protection & Insulation
  • Stack Height                                       Customizable as per CPCB / PNGRB / State Pollution Control norms
  • Flame Detection                                 UV Sensor / Thermocouple
  • Operation Mode                                 Fully Automatic (Manual override available)
  • Hidden flame – safer for populated or regulated areas
  • Smokeless and complete combustion
  • Low noise operation — ideal for urban or residential zones
  • Automatic ignition and flame monitoring
  • Suitable for continuous or intermittent flaring
  • Compliant with CPCB, PNGRB, GHG Protocol Guidelines
  • Compatible with SCADA / Remote control systems

      Part                                                                 Material

  • Chamber Housing                              SS304 / SS316 with Insulation
  • Burner Tip                                            SS316 with Wind Shield & Flame Holder
  • Frame & Base                                      MS Painted / SS Fabricated Structure
  • Valves & Fittings                                 SS304 / Flameproof Options Available

      Parameter                           Value / Range

  • Capacity                       20 – 1000 Nm³/hr (customizable)
  • Flare Stack Heigh       5m – 12m or as per regulation
  • Ignition                         Electric / Pilot Burner
  • Flame Detection         UV / Thermocouple Sensor
  • MOC                             SS304 / SS316
  • Control Panel              PLC-Based, IP65-Rated
