Anaerobic Digester Heating  System

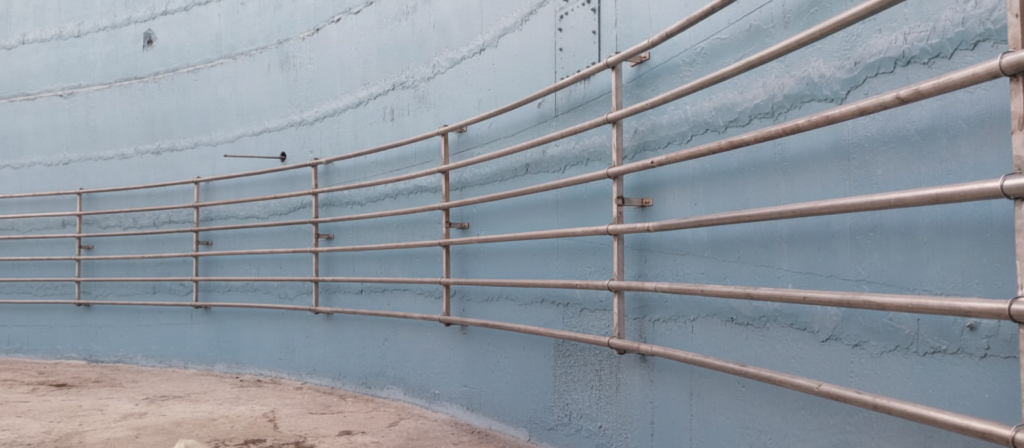

The Digester Coil Type Heating System is an internal heat exchanger installed inside the biogas digester to maintain the required temperature (35–55°C) for optimum anaerobic digestion.

Unlike external heat exchangers, the coil system transfers heat directly inside the digester, ensuring uniform temperature distribution, faster microbial activity, and higher biogas yield.

TECTIKO coil-type systems are fabricated using corrosion-resistant stainless steel, designed for long operational life, and engineered to prevent sediment buildup and clogging.

      Key Features

  • Internal heating system – no external circulation needed
  • Uniform temperature distribution throughout digester
  • Made from SS316 / SS304 for corrosion resistance
  • Designed for 24×7 operation in harsh slurry environment
  • Spiral / serpentine coil layout for maximum heat transfer
  • Custom lengths and diameters based on tank size
  • Compatible with hot water, glycol, or thermal oil



      Working Principle

  • Hot water or thermal fluid is circulated inside the coils
  • Heat transfers from the coil into the slurry
  • Maintains digester temperature required for microbial activity
  • No direct mixing of heating medium and slurry

      Parameter                                   Specification

  •  Material                                  SS304 / SS316 / Duplex Steel
  • Pipe Diameter                        1” – 3”
  • Coil Layout                             Spiral / Ring / U-shape
  • Heating Medium                    Hot Water / Glycol / Steam
  • Operating Temperature        Up to 90°C
  • Operating Pressure               2–6 bar
  • Heat Load Capacity             10 kW –  500 kW
  • Installation                            Wall Mounted / Bottom Mounted

       Applications

  • CSTR Type Biogas Digesters
  • Industrial Waste Digesters
  • Sewage Sludge Digesters
  • Food Waste / Agro Waste Biogas Plants
  • Dairy & Poultry Farms

       Benefits

  • Maintains optimum digestion temperature
  • Higher biogas yield and faster digestion
  • No clogging – smooth coil design
  • Easy installation and low maintenance
  • Long service life – high-grade stainless steel
  • Uses waste heat from engines or boilers
