Tube & Tube heat Exchanger

TECTIKO Tube & Tube Heat Exchanger is a high-efficiency thermal transfer system used in biogas, wastewater, and industrial processes for heating or cooling slurry, digestate, and other process fluids.

TECTIKO Tube-in-Tube Heat Exchangers are specially engineered for high-solid slurry and viscous media, where conventional plate heat exchangers are prone to clogging. The concentric tube design of TECTIKO ensures smooth flow, simplified cleaning, and continuous heat transfer with minimal maintenance requirements.

TECTIKO systems are well suited for pre-heating digester feedstock by utilizing waste heat from biogas engines or boilers, supporting optimal digestion temperature and improved gas production efficiency.

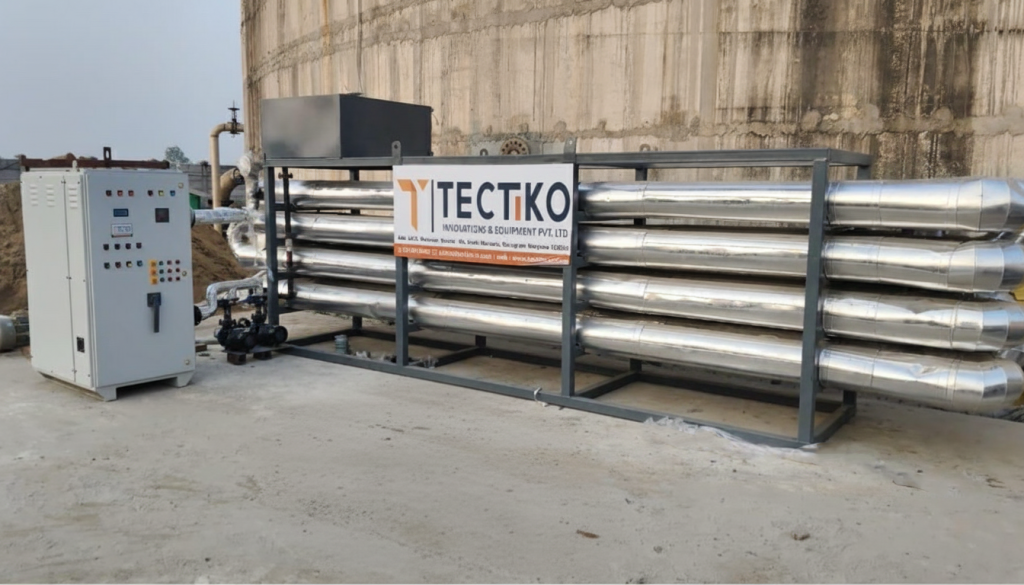

Tube and Tube Heat Exchanger

       Key Features

  • Double-tube construction (inner + outer tube)
  • Smooth flow path – no clogging, ideal for slurry
  • High thermal efficiency with minimum pressure drop
  • Fully welded corrosion-resistant structure
  • Suitable for fibrous & high viscosity material
  • Can use hot water, steam, or engine jacket heat
  • Easy access for cleaning and maintenance



      Working Principle

       The system consists of two concentric tubes:

  •  Inner tube carries biogas slurry / feed material
  •  Outer tube carries hot / cold water or thermal fluid
    Heat transfer happens through the tube wall without physical mixing of fluids

       Parameter                                   Specification

  • Construction                          SS304 / SS316 / Duplex Steel
  • Tube Type                               Concentric Tube-in-Tube
  • Capacity                                 1 m³/hr to 100 m³/hr
  • Operating Pressure               Up to 6 bar
  • Temperature Range              Up to 120°C
  • Heat Transfer Area                0.5 m² – 60 m²
  • Line Size                                  1 – 6
  • Cleaning                                  Manual / CIP Nozzle Optional

      Applications

  • Biogas Plant Slurry Heating
  • Digestate Heat Recovery Engine
  • Jacket Heat Utilization
  • Wastewater Treatment Heating
  • Industrial Process Heating & Cooling
  • Effluent Sterilization & Pasteurization



      Benefits

  • Maintains optimum digestion temperature
  • Increases biogas production
  • Reduces energy consumption
  • Handles high solids without choking
  • Easy to clean – minimal downtime
  • Enables heat recovery for energy saving
