Online Type Biogas Analyzer

(Real-Time CH₄, CO₂, H₂S & O₂ Gas Composition Monitoring System)

Biogas plants must continuously monitor the quality of gas being produced to:

  • Optimize plant operation
  • Maintain consistent methane levels for compression or combustion
  • Protect engines, compressors, and gas upgradation systems
  • Ensure safety, efficiency, and compliance

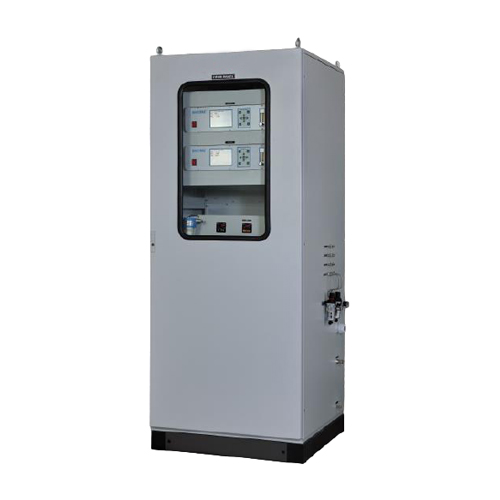

TECTIKO’s Online Biogas Analyzer is an advanced, real-time gas monitoring device that measures key gas components like Methane (CH₄), Carbon Dioxide (CO₂), Hydrogen Sulfide (H₂S), and Oxygen (O₂) — giving you accurate gas quality insights 24×7.

Working Principle:

  • The analyzer draws a continuous sample of biogas through a probe line.
  • It uses NDIR (Non-Dispersive Infrared), Electrochemical, or Thermal Conductivity Sensors to detect and measure gas composition.
  • The system displays real-time concentration levels on a digital screen and sends data output to SCADA/PLC or a local panel.

     Gas                Typical Measurement

  • Range
  • CH₄                      0–100%
  • CO₂                      0–100%
  • H₂S                      0–2000 ppm / up to 10,000 ppm
  • O₂                        0–25%
  • Optional             NH₃, CO, Temperature, Humidity
      • Real-time, multi-gas monitoring system
      • Helps in CBG purity control and gas blending
      • Protects compressors, upgradation & engine units
      • High-accuracy sensor modules (NDIR/Electrochemical)
      • Integrated moisture filter & sample conditioning system
      • SCADA/PLC/Remote Monitoring compatible
      • Auto-calibration & purge system (optional)
      • Customizable as per number of gases and site conditions

      Component                                              Specification / Description

  • Sensor Types                                NDIR (CH₄/CO₂), Electrochemical (H₂S/O₂), TCD (optional)
  • Display                                           7” Touchscreen / Digital LCD / LED
  • Sample Handling                         Pump + Filter + Moisture Trap + Flow Meter (0.5–1 LPM)
  • Calibration                                    Manual / Auto (using standard calibration gas)
  • Power Supply                               230V AC / 24V DC
  • Enclosure                                     IP65 / FRP / SS / Flameproof Optional
  • Data Output                                 MODBUS / 4–20mA / RS-485 / Relay

      Parameter                                 Value / Options

  • Measuring Cycle                      Continuous / 5 sec update
  • Operating Temperature           0–50°C
  • Sample Flow Rate                    0.5 – 1.5 LPM
  • Accuracy                                   ±1% of full scale (sensor specific)
  • Gas Conditioning                     Moisture trap + filter + pump
  • Calibration Gas Required        Yes (recommended monthly/quarterly)
  • CBG Production Plants (Purity Control)
  • Biogas-to-Power Projects
  • STP/ETP Sludge Digesters
  • Agro Waste Biogas Plants
  • Gas Engine & Generator Protection
  • Gas Upgradation & Bottling Units
  • Industrial Anaerobic Digestion Plants
